Model:
5500/5600
Brand:
DLL

Product Description

Product Description

Specification:

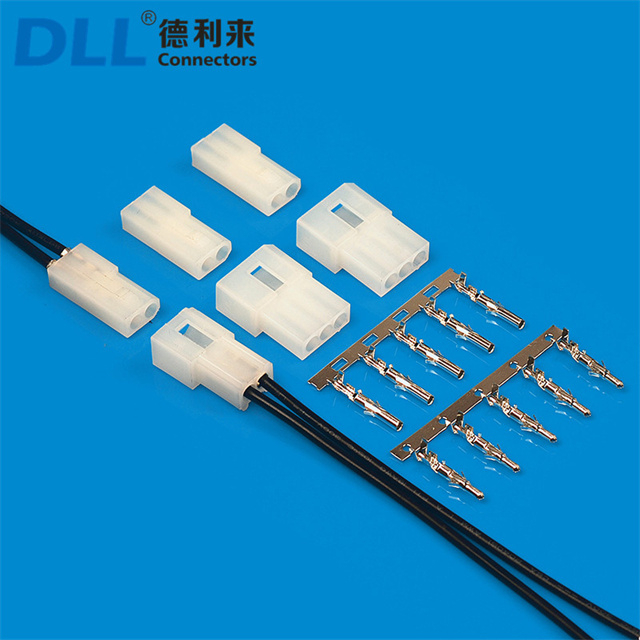

replace 5500 3.7mm 3pin cable connector;molex 5500 3.7mm 3pin cable connector

Rated Voltage:	250V AC,DC
Rated current:	5A AC,DC
Contact resistance:	10MΩ max
Insulation Resistance:	1000MΩ min
Withstand Voltage:	1500V AC/minute
Temperature:	-25℃~+85℃

Material:

Receptacle Housing:	(Nylon)UL94-V0(2)
Plug Housing:	(Nylon)UL94-V0(2)
Terminal:	Phosphor Bronze,Tin Plated

Drawing:

equivalent MOLEX 3.7MM pitch 5500/5600 connector 0003066023 03-06-6023 0306-6023 1625-2R1 pcb housing wire to wire connector

Our company has powerful research and development ability,we can open mold,develop and produce the products you want!

Application

Efficient Installation in Tight Spaces

In automotive wiring, for example, where space under the dashboard or in the engine compartment is limited, the Molex 5500 connector's flexibility and diameter adaptation are valuable. It can be used to connect wires for various sensors, lights, and control modules without taking up too much space. The ability to work with a 3 - hole wire harness diameter also simplifies the installation process, as it can be easily integrated with the existing wiring harness layout in the vehicle.

Customizable Wiring in Electronics Manufacturing

In electronics manufacturing, the connector provides the flexibility to create custom - designed wiring configurations. For instance, in a prototype development of a new consumer electronics product, engineers can use this connector to quickly and easily set up the internal wiring according to the specific requirements of the product's design. The ability to adapt to different wire harness diameters and spatial arrangements allows for more efficient prototyping and reduces the time and effort required to make changes to the wiring layout.

replace molex 5500 0003061032 03-06-1032 3.7mm 3pin cable connector replace molex 5500 0003061032 03-06-1032 3.7mm 3pin cable connector replace molex 5500 0003061032 03-06-1032 3.7mm 3pin cable connector replace molex 5500 0003061032 03-06-1032 3.7mm 3pin cable connector

replace 5500 3.7mm 3pin cable connector molex 5500 3.7mm 3pin cable connector 5500 3.7mm 3pin cable connector replace molex 5500 3pin cable connector molex 5500 3pin cable connector replace molex 5500 3.7mm 3pin cable connector
