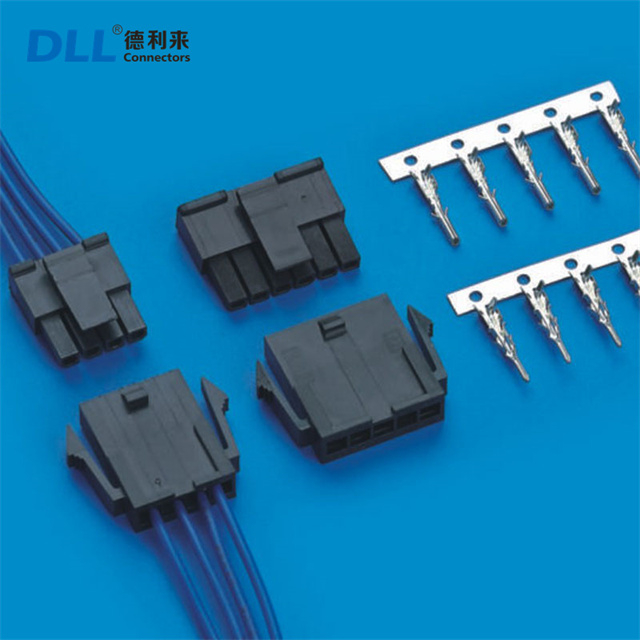

replace molex 43645 43645-0210 43645-0310 3.0mm pitch battery connector

replace 43645 3.0mm pitch battery connector,molex 43645 3.0mm pitch battery connector,43645 3.0mm pitch battery connector,replace43645 3.0mm pitch connector,molex 43645 battery connector
MODEL:
43645-2Y
43645-3Y
Availability:
Quantity:
Inquire Add to Basket

  • 43645/43640

  • DLL

Specification

SPECIFICATION

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD

replace 43645 3.0mm pitch battery connector;molex 43645 3.0mm pitch battery connector

Rated Voltage:

   250V AC,DC

Rated current:

   3.5A AC,DC

Contact resistance:

   20MΩ max

Insulation Resistance:

   1000MΩ min

Withstand Voltage:

   1000V AC/minute

Temperature:

   -25℃~+85℃



Material

MATERIAL

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD



Receptacle Housing:

(Nylon) UL94-V0(2)

Terminal:

Phosphor Bronze,Tin Plated

Plug Housing:

(Nylon) UL94-V0(2)



Drawing

 3.0mm pitch 43645-0800 43645-0900 43645-1000 43645 wire to wire connector




More Products For You To Choose:


Application

Power Supply Capability
The Molex 43645 series 3.0mm pitch battery connectors are designed to handle the power requirements of digital cameras and camcorders. These devices typically require a stable power supply to operate their various components such as the image sensor, the lens motor, and the display screen. The connectors are engineered to have an appropriate current - carrying capacity to ensure that the battery can supply sufficient power to the device without overheating or voltage drops.
Data Transmission
In addition to power supply, these connectors can also play a role in data transmission in some cases. In digital cameras and camcorders, there may be a need to transmit data between the battery and the device's main circuit board. This could include information about the battery's charge level, temperature, and other diagnostic data. The 3.0mm pitch connectors have the potential to provide the necessary electrical paths for such data transfer, allowing the device to monitor and manage the battery's status effectively.


replace molex 43645 43645-0210 43645-0310 3.0mm pitch battery connector          replace molex 43645 43645-0210 43645-0310 3.0mm pitch battery connector     replace molex 43645 43645-0210 43645-0310 3.0mm pitch battery connector      replace molex 43645 43645-0210 43645-0310 3.0mm pitch battery connector
