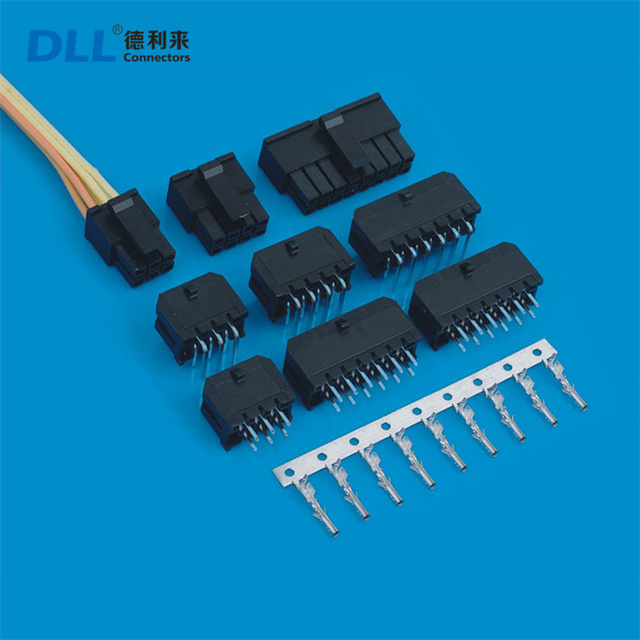

replace molex 43045 43045-2027 46045-2227 3.0mm dip power connector

replace 43045 3.0mm dip power connector,molex 43045 3.0mm dip power connector,43045 3.0mm dip power connector,replace 43045 dip power connector,molex 43045 dip power connector
MODEL:
43045-20A
43045-22A
Availability:
Quantity:
Inquire Add to Basket

  • 43045

  • DLL

Specification

SPECIFICATION

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD


 replace 43045 3.0mm dip power connector;molex 43045 3.0mm dip power connector

Rated Voltage:

   250V AC,DC

Rated current:

   3.5A AC,DC

Contact resistance:

   20MΩ max

Insulation Resistance:

   1000MΩ min

Withstand Voltage:

   1000V AC/minute

Temperature:

   -25℃~+85℃



Material

MATERIAL

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD



Housing:

(Nylon) UL94-V0(2)

Terminal:

Phosphor Bronze,Tin Plated

Wafer:

(Nylon) UL94-V0(2)



Drawing




More Products For You To Choose:


Application

Miniaturization: With a spacing of 3.00mm (0.118 inches), the connector can achieve efficient connections even in limited spaces.
High current carrying capacity: capable of carrying up to 5.0A of current, suitable for various power applications.
Diversified configuration: Provides multiple connection methods such as single row, double row, wire to board (W2B), and wire to wire (W2W) to meet different application needs.
Reliability and Durability: Using high-quality materials and advanced manufacturing processes to ensure the reliability and durability of the connector.
Model diversity: The 43045 series includes numerous specific models, such as 43045-0200, 43045-0400, 43045-0800, etc. Each model may have different pin numbers, arrangements, locking mechanisms, and other characteristics.
Adaptability: These connectors can be widely used in computers, workstations, satellites, mobile phones, and a large number of consumer products, especially in applications that require single or double row connections with 2-24 size circuits.
