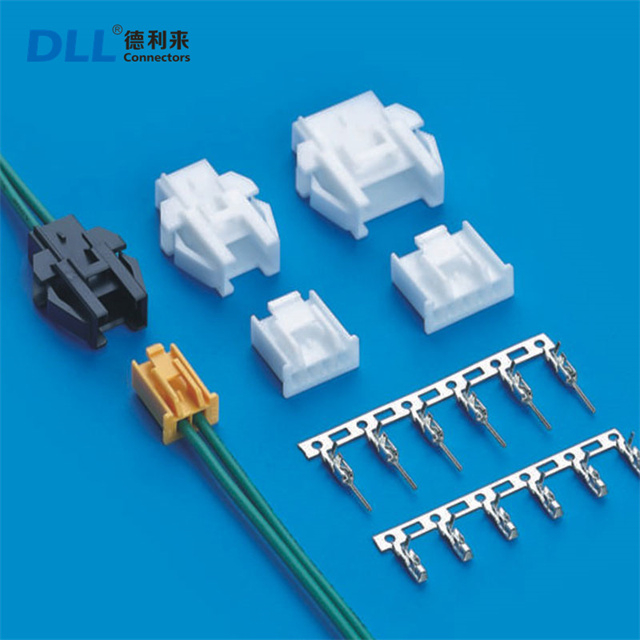

replace jst xm xmr-06v 2.5mm wire harness connector

replace xm 2.5mm wire harness connector,jst xm 2.5mm wire harness connector,xm 2.5mm wire harness connector,replace xm wire harness connector,jst xm wire harness connector
MODEL:
XM-6R
Availability:
Quantity:
Inquire Add to Basket

  • XM

  • DLL

Specification

SPECIFICATION

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD

replace xm 2.5mm wire harness connector;jst xm 2.5mm wire harness connector

Rated Voltage:

   250V AC,DC

Rated current:

   3A AC,DC

Contact resistance:

   20MΩ max

Insulation Resistance:

   500MΩ min

Withstand Voltage:

   1500V AC/minute

Temperature:

   -25℃~+85℃



Material

MATERIAL

DELI

                                                                                                                                                                  ZHEJIANG DELI CONNECTORS CO.,LT



Receptacle Housing:

(Nylon)UL94V-0(2)

Terminal:

Phosphor Bronze,Tin Plated

Plug Housing:

(Nylon)UL94V-0(2)

Lock:

(Nylon)UL94V-0(2)



Drawing





More Products For You To Choose:

Application

Temperature Resistance
Automotive electrical systems are exposed to a wide range of temperatures. The xm connector is designed to operate in extreme conditions, from the cold of winter to the heat of the engine compartment in summer. It can typically withstand temperatures ranging from - 40°C to + 125°C or even more, depending on the specific design. This temperature resistance ensures that the connector functions properly throughout the year and in different driving conditions.
Resistance to Vibration and Shock
Vehicles experience a significant amount of vibration and shock during operation, especially on rough roads or during acceleration and braking. The xm connector's robust design and secure locking mechanism help it to withstand these mechanical stresses. The connector housing is made of durable materials that can absorb and dissipate the energy from vibrations and shocks. This prevents the terminals from loosening or the connection from breaking, ensuring the reliability of the electrical system.


replace jst xm xmr-06v  2.5mm wire harness connector           replace jst xm xmr-06v  2.5mm wire harness connector          replace jst xm xmr-06v  2.5mm wire harness connector            replace jst xm xmr-06v  2.5mm wire harness connector          replace jst xm xmr-06v  2.5mm wire harness connector          replace jst xm xmr-06v  2.5mm wire harness connector
