YL
DLL
Specification:

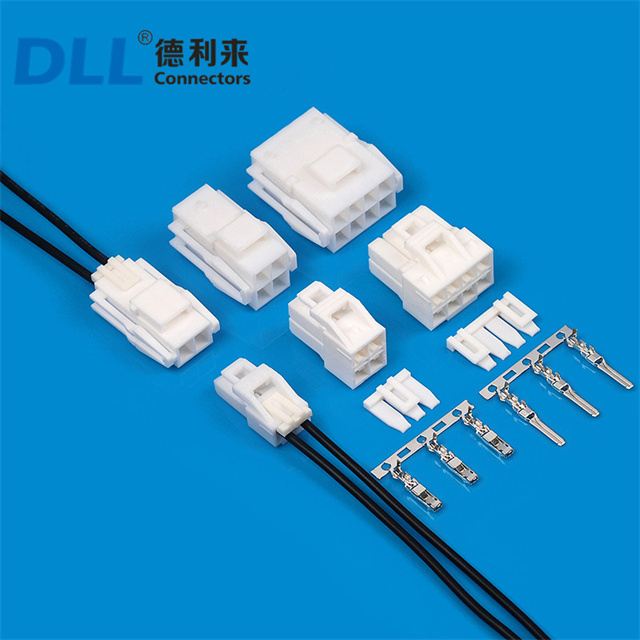

replace YL 4.5mm single row housing connector;jst YL 4.5mm single row housing connector
| Poles: | 2,3,4,6,8,9,12,15,16P |
| Rated Voltage: | 300V AC,DC |
| Rated current: | 10A AC,DC |
| Contact resistance: | ≤10MΩ max |
| Insulation Resistance: | ≥1000 MΩ min |
| Withstand Voltage: | 1500V AC/minute |
| Temperature: | -25℃~+85℃ |
| Wire Range: | AWG#26~#16 |
Material:
| Receptacle Housing: | (Nylon)UL94-V0(2) |
| Plug Housing: | (Nylon)UL94-V0(2) |
| Terminal: | Phosphor Bronze,Tin Plated |
| Lock: | (Nylon)UL94-V0(2) |
Drawing:
Our company has powerful research and development ability,we can open mold,develop and produce the products you want!
More Products For You To Choose:
Application
Engine Control Unit (ECU): The connectors are used to connect the ECU with various sensors and actuators in the engine, such as the throttle position sensor, fuel injector, and ignition coil. The stable transmission of signals and power is crucial for the accurate control of the engine's operation, improving fuel efficiency and reducing emissions.
Transmission Control Unit (TCU): In the transmission system, the YLP series connectors can be used to connect the TCU with the solenoids, sensors, and other components in the transmission. They ensure the reliable transmission of signals for gear shifting and torque control, improving the smoothness and reliability of the transmission.
replace jst YL ylp-16v 4.5mm single row housing connector replace jst YL ylp-16v 4.5mm single row housing connector replace jst YL ylp-16v 4.5mm single row housing connector replace jst YL ylp-16v 4.5mm single row housing connector replace jst YL ylp-16v 4.5mm single row housing connector
