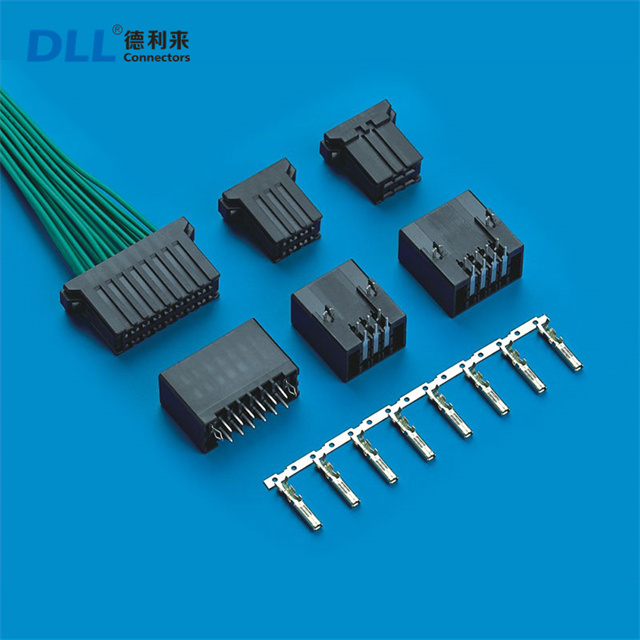

DL3810 double row
DLL
Specification:
replace DL3810 wire to board dip connector,TE DL3810 wire to board dip connector
| Rated Voltage: | 250V AC,DC |
| Rated current: | 8A AC,DC |
| Contact resistance: | 10MΩ Max |
| Insulation Resistance: | 1000 MΩ min |
| Withstand Voltage: | 1500V AC/minute |
| Temperature: | -25℃~+85℃ |
Material:
| Housing: | PBT UL94-V0(2) |
| Terminal: | Phosphor bronze, Gold plated |
| Wafer: | PBT UL94-V0(2) |
Drawing:
More Products For You To Choose:
Application
Multi pin design to share current: Generally, a multi pin design structure is adopted, where multiple pins share the task of current transmission. For example, 178328-5 has 20 pins, which can distribute the total current to multiple pin paths, avoiding problems such as overheating or damage to a single pin due to carrying excessive current, and improving the overall overcurrent capability.
replace TE DL3810 178328-2 178328-5 wire to board dip connector replace TE DL3810 178328-2 178328-5 wire to board dip connector replace TE DL3810 178328-2 178328-5 wire to board dip connector replace TE DL3810 178328-2 178328-5 wire to board dip connector replace TE DL3810 178328-2 178328-5 wire to board dip connector
