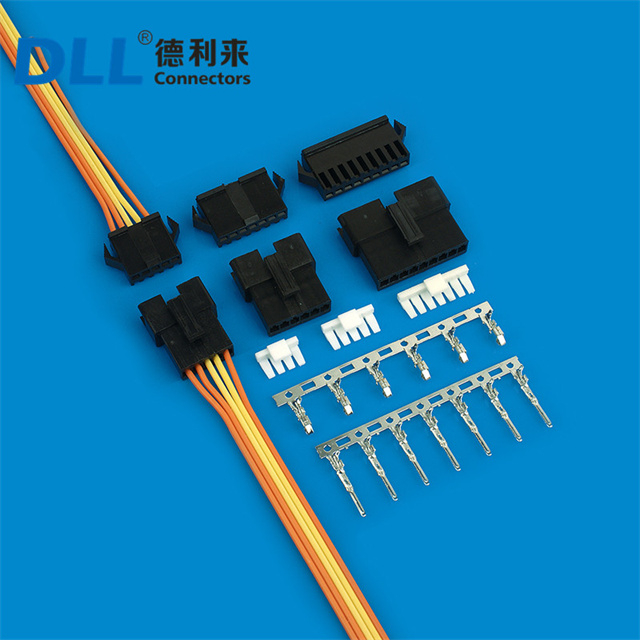

replace JST sm SMP-08V-NC SMP-09V-NC single row housing connector

replace sm single row housing connector,JST sm single row housing connector,sm single row housing connector,replace sm single row connector,JST sm single row connector
MODEL:
SM-8Y
SM-9Y
Availability:
Quantity:
Inquire Add to Basket

  • SM

  • DLL

Specification

SPECIFICATION

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD

 replace sm single row housing connector;JST sm single row housing connector

Rated Voltage:

   250V AC,DC

Rated current:

   2A AC,DC

Contact resistance:

   10MΩ max

Insulation Resistance:

   1000MΩ min

Withstand Voltage:

   800V AC/minute

Temperature:

   -25℃~+85℃



Material

MATERIAL

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD



Receptacle Housing:

(Nylon)UL94-V0(2)

Terminal:

Phosphor Bronze,Tin plated

Plug Housing:

(Nylon)UL94-V0(2)



Drawing

DRAWING

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD




PHBL 2.0mm pitch wire to wire connectorPHBL 2.0mm pitch wire to wire connectorPHBL 2.0mm pitch wire to wire connectorPHBL 2.0mm pitch wire to wire connector

 More Products For You To Choose:




Application

Precision machining: During the manufacturing process, precision machining techniques are used to ensure the dimensional accuracy and surface quality of the contacts and housing, improving the overall performance and reliability of the connector.
Strict quality inspection: Manufacturers conduct rigorous quality inspections on every connector, including visual inspection, electrical performance testing, mechanical performance testing, etc., to ensure that only products that meet standards can enter the market.
Wide temperature range: The working temperature range is usually between -25 ℃ and 85 ℃, which can work normally under different environmental temperatures and is not easily affected by temperature changes that may cause performance degradation or damage.
Corrosion resistance: The tin plating treatment on the contact surface and the corrosion resistance of the shell material enable it to be used in harsh environments such as humidity and salt spray to a certain extent, making it less prone to rusting and corrosion.

replace JST sm SMP-08V-NC SMP-09V-NC single row housing connector       replace JST sm SMP-08V-NC SMP-09V-NC single row housing connector         replace JST sm SMP-08V-NC SMP-09V-NC single row housing connector         replace JST sm SMP-08V-NC SMP-09V-NC single row housing connector
