JC15
DLL
SPECIFICATION
DELI
ZHEJIANG DELI CONNECTORS CO.,LTD
replace JC15 2.5mm pitch dip connector;replace JC15 wire to board dip connector
| Rated Voltage: | 250V AC,DC |
| Rated current: | 3A AC,DC |
| Contact resistance: | 20MΩ max |
| Insulation Resistance: | 1000MΩ min |
| Withstand Voltage: | 1000V AC/minute |
| Temperature: | -25℃~+85℃ |
| Wire Range: | AWG#30~#22 |
MATERIAL
DELI
ZHEJIANG DELI CONNECTORS CO.,LTD
| Housing: | (Nylon)UL94-V0(2) |
| Terminal: | Phosphor Bronze,Tin Plated |
DRAWING
DELI
ZHEJIANG DELI CONNECTORS CO.,LTD

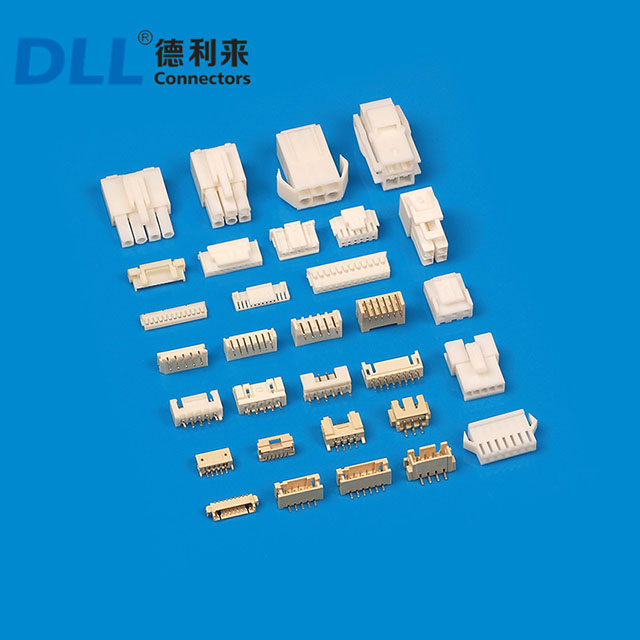

MORE PRODUCT FOR YOU TO CHOOSE
DELI
ZHEJIANG DELI CONNECTORS CO.,LTD
Application
Instrumentation and Control Systems: The JC15 connector is used to connect the display screen, control buttons, and internal circuit boards of various instruments and meters, as well as the connection between the power supply and the main control board. The reliable electrical performance of the connector can ensure the accuracy and stability of the instrument's operation.
replace JC15 2.5mm pitch connector wire to board DIP connector replace JC15 2.5mm pitch connector wire to board DIP connector replace JC15 2.5mm pitch connector wire to board DIP connector replace JC15 2.5mm pitch connector wire to board DIP connector replace JC15 2.5mm pitch connector wire to board DIP connector
