PA-H
DLL
SPECIFICATION
DELI
ZHEJIANG DELI CONNECTORS CO.,LTD

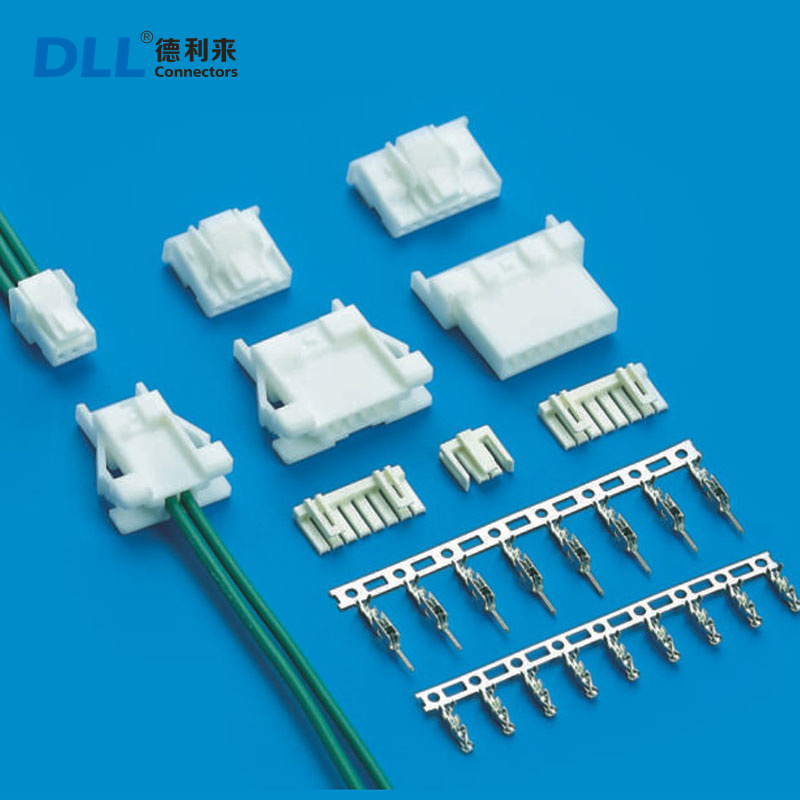

alternative PA-H 2.0mm wire to wire housing connector;jst PA-H 2.0mm wire to wire housing connector
Rated Voltage: | 250V AC,DC |
Rated current: | 3A AC,DC |
Contact resistance: | 20MΩ max |
Insulation Resistance: | 1000MΩ min |
Withstand Voltage: | 800V AC/minute |
Temperature: | -25℃~+85℃ |
MATERIAL
DELI
ZHEJIANG DELI CONNECTORS CO.,LTD
Housing: | (Nylon) UL94-V0(2) |
Terminal: | Phosphor Bronze,Tin Plated |
Wafer: | (Nylon) UL94-V0(2) |
More Products For You To Choose:
Benefits
By replacing the JST PMS-04V-S and PMS-05V-S connectors with the PA-H series connector, users can enjoy improved performance and reliability in their applications.
The quick connection and disconnection feature of the PA-H series connector saves time and effort during installation and maintenance, increasing overall efficiency.
The compatibility with a wide range of wire sizes allows for greater flexibility in design, making the PA-H series connector suitable for a variety of applications.
The high-quality construction of the PA-H series connector ensures long-term durability and reliable performance, reducing the need for frequent replacements.
The secure locking mechanism of the connector provides added safety and peace of mind in critical applications, preventing accidental disconnection and potential damage.
SPECIFICATION
DELI
ZHEJIANG DELI CONNECTORS CO.,LTD
alternative PA-H 2.0mm wire to wire housing connector;jst PA-H 2.0mm wire to wire housing connector
Rated Voltage: | 250V AC,DC |
Rated current: | 3A AC,DC |
Contact resistance: | 20MΩ max |
Insulation Resistance: | 1000MΩ min |
Withstand Voltage: | 800V AC/minute |
Temperature: | -25℃~+85℃ |
MATERIAL
DELI
ZHEJIANG DELI CONNECTORS CO.,LTD
Housing: | (Nylon) UL94-V0(2) |
Terminal: | Phosphor Bronze,Tin Plated |
Wafer: | (Nylon) UL94-V0(2) |
More Products For You To Choose:
Benefits
By replacing the JST PMS-04V-S and PMS-05V-S connectors with the PA-H series connector, users can enjoy improved performance and reliability in their applications.
The quick connection and disconnection feature of the PA-H series connector saves time and effort during installation and maintenance, increasing overall efficiency.
The compatibility with a wide range of wire sizes allows for greater flexibility in design, making the PA-H series connector suitable for a variety of applications.
The high-quality construction of the PA-H series connector ensures long-term durability and reliable performance, reducing the need for frequent replacements.
The secure locking mechanism of the connector provides added safety and peace of mind in critical applications, preventing accidental disconnection and potential damage.
