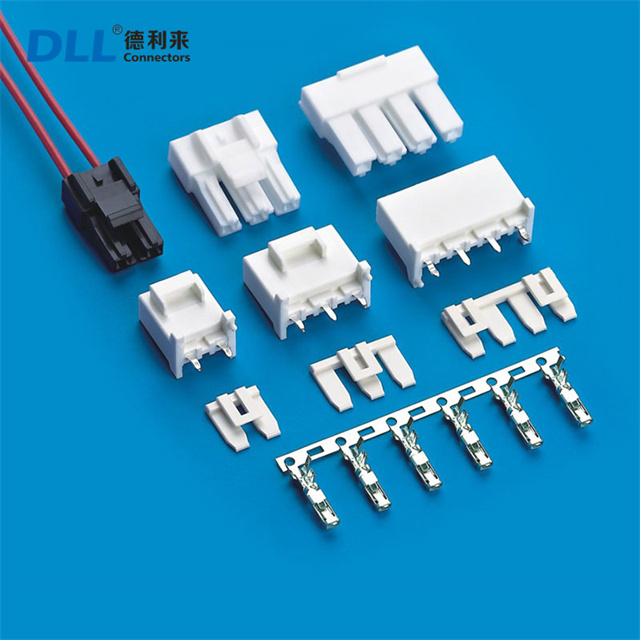

VYH 6.5mm pitch wire to board dip connector

vyh wire to board dip connector,vyh 6.5mm pitch connector,6.5mm pitch wire to board dip connector,vyh wire to board connector,vyh dip connector
Availability:
Quantity:
Inquire Add to Basket

  • VYH

  • DLL

Specification

SPECIFICATION

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD

VYH wire to board dip connector;VYH 6.5mm pitch connector

Rated Voltage:

   300V AC,DC

Rated current:

   15A AC,DC

Contact resistance:

   10MΩ max

Insulation Resistance:

   1000MΩ min

Withstand Voltage:

   1500V AC/minute

Temperature:

   -25℃~+85℃



Material

MATERIAL

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD



Housing:

(Nylon) UL94-V0(2)

Terminal:

Phosphor Bronze,Tin Plated

Wafer:

(Nylon) UL94-V0(2)

Lock:

(Nylon) UL94-V0(2)



Drawing

 VYH

More Products For You To Choose:


Application

Stress - Resistant Design
The design of the VYH 6.5mm pitch wire - to - board dip connector takes into account the mechanical stresses it will encounter during its life cycle. The pins are firmly held in place within the housing to prevent them from bending or breaking during insertion and extraction. The connection between the wire and the pins is also designed to be stable and resistant to stress.
Testing and Standards Compliance
The VYH connector is likely tested to meet certain industry standards for mechanical life. Manufacturers usually conduct tests such as insertion - extraction cycle tests to determine the number of times the connector can be used before it starts to show signs of wear or failure. By complying with these standards, the VYH connector provides a reliable option for applications where a long mechanical life is required. For example, in automotive electronics, where connectors need to have a high level of durability and reliability over the life of the vehicle, the VYH connector's compliance with relevant standards makes it a suitable choice.


VYH 6.5mm pitch wire to board dip connector            VYH 6.5mm pitch wire to board dip connector            VYH 6.5mm pitch wire to board dip connector          VYH 6.5mm pitch wire to board dip connector            VYH 6.5mm pitch wire to board dip connector          VYH 6.5mm pitch wire to board dip connector        VYH 6.5mm pitch wire to board dip connector
