TJC9
DLL
Specification:

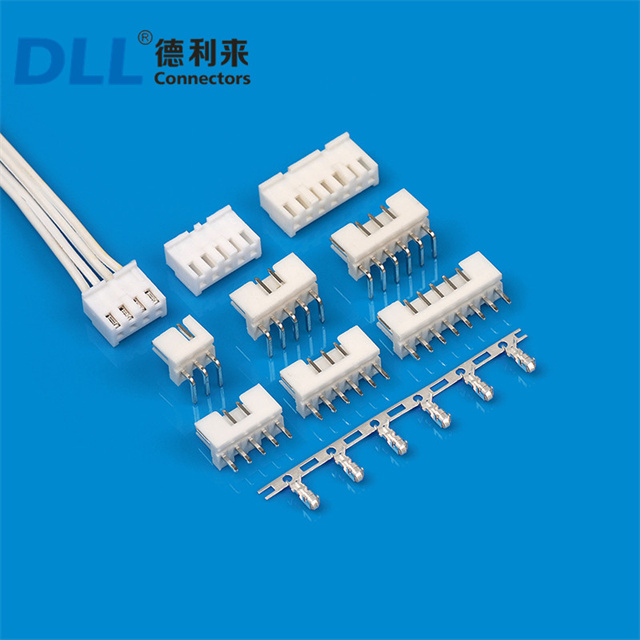

TJC9 2.5MM Pitch connector;TJC9 wire to board connector
| Rated Voltage: | 250V AC,DC |
| Rated current: | 3A AC,DC |
| Contact resistance: | 10MΩ max |
| Insulation Resistance: | 1000MΩ min |
| Withstand Voltage: | 1000V AC/minute |
| Temperature: | -25℃~+85℃ |
Material:
| Housing: | (Nylon)UL94-V0(2) |
| Terminal: | Phosphor Bronze,Tin plated |
| Wafer: | (Nylon)UL94-V0(2) |
Drawing:
Our company has powerful research and development ability,we can open mold,develop and produce the products you want!
More Products For You To Choose:
Application
If you are hand soldering, longer pins may be more convenient as they provide more surface area for soldering. However, if you are using a reflow soldering process, shorter pins may be more suitable to prevent excess solder from flowing onto other components on the PCB board.
TJC9 2.5MM Pitch wire to board connector TJC9 2.5MM Pitch wire to board connector TJC9 2.5MM Pitch wire to board connector TJC9 2.5MM Pitch wire to board connector TJC9 2.5MM Pitch wire to board connector TJC9 2.5MM Pitch wire to board connector TJC9 2.5MM Pitch wire to board connector
