SL
DLL
SPECIFICATION
DELI
ZHEJIANG DELI CONNECTORS CO.,LTD

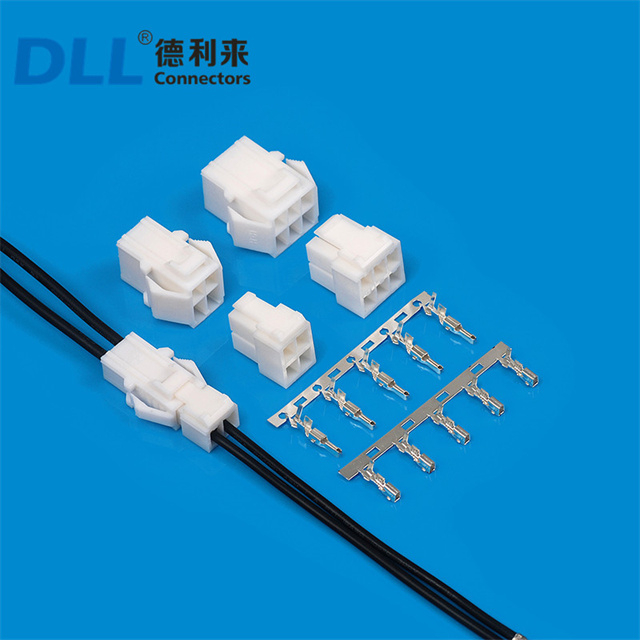

SL 4.2mm pitch connector;SL wire to wire pcb housing connector
| Rated Voltage: | 300V AC,DC |
| Rated current: | 7A AC,DC |
| Contact resistance: | 20MΩ Max |
| Insulation Resistance: | 1000 MΩ min |
| Withstand Voltage: | 1500V AC/minute |
| Temperature: | -25℃~+85℃ |
MATERIAL
DELI
ZHEJIANG DELI CONNECTORS CO.,LTD
| Housing: | (Nylon)UL94-V0(2) |
| Terminal: | Phosphor Bronze,Tin Plated |
DRAWING
DELI
ZHEJIANG DELI CONNECTORS CO.,LTD
Application
When used in a data transmission circuit, the connector ensures that the electrical signals from the wires are accurately transferred to the PCB and vice versa. This is crucial for the proper functioning of any electronic device that relies on the communication between different parts of the circuit through the wires and the PCB.
SL 4.2mm pitch wire to wire pcb housing connector SL 4.2mm pitch wire to wire pcb housing connector SL 4.2mm pitch wire to wire pcb housing connector SL 4.2mm pitch wire to wire pcb housing connector SL 4.2mm pitch wire to wire pcb housing connector SL 4.2mm pitch wire to wire pcb housing connector
