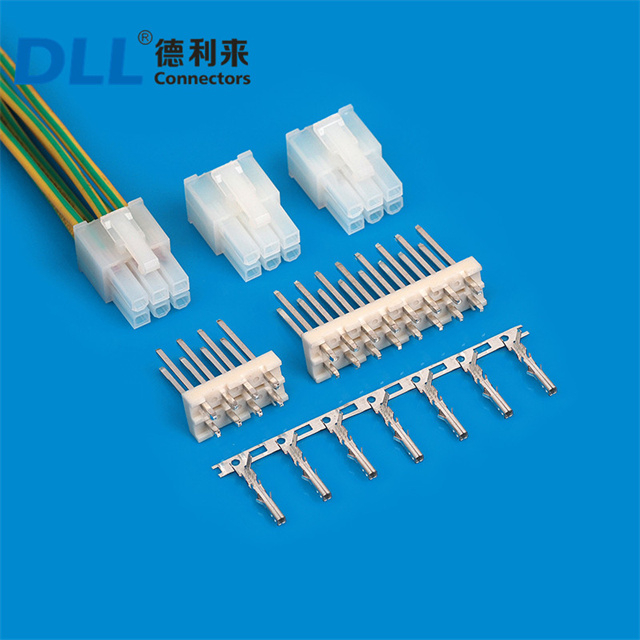

Plug 4.2 Series
DLL
Specification:
4.2mm pitch double row PCB connector;Plug 4.2 Series double row PCB connector,
| Rated Voltage: | 300V AC,DC |
| Rated current: | 9A AC,DC |
| Contact resistance: | 20MΩ max |
| Insulation Resistance: | 1000MΩ min |
| Withstand Voltage: | 1500V AC/minute |
| Temperature: | -25℃~+85℃ |
Material:
| Housing: | (Nylon)UL94-V0(2) |
| Terminal: | Phosphor Bronze,Tin plated |
| Wafer: | (Nylon)UL94-V0(2) |
| Receptacle Housing: | (Nylon)UL94-V0(2) |
Drawing:
Our company has powerful research and development ability,we can open mold,develop and produce the products you want!
More Products For You To Choose:
Application
The 4.2mm pitch is a widely recognized and adopted standard in the electronics industry. This means that it can easily integrate with a vast array of other components, circuit boards, and mating connectors that follow the same pitch specification. For example, when designing a printed circuit board (PCB) layout for a consumer electronics product like a smart speaker or a digital camera, engineers can readily select and incorporate these connectors knowing that they will fit seamlessly with other standardized parts. There's no need for custom-designed or specialized connectors, which can save significant time in the design phase as well as reduce potential compatibility issues during assembly.The standard pitch also allows for easy replacement or upgrade of components in the future. If a particular module connected via the 4.2mm pitch double row PCB connector needs to be updated or repaired, technicians can quickly find compatible replacements in the market, further streamlining the maintenance and production processes over the long term.
Plug 4.2 Series 4.2mm pitch double row PCB connector Plug 4.2 Series 4.2mm pitch double row PCB connector Plug 4.2 Series 4.2mm pitch double row PCB connector Plug 4.2 Series 4.2mm pitch double row PCB connector Plug 4.2 Series 4.2mm pitch double row PCB connector Plug 4.2 Series 4.2mm pitch double row PCB connector
