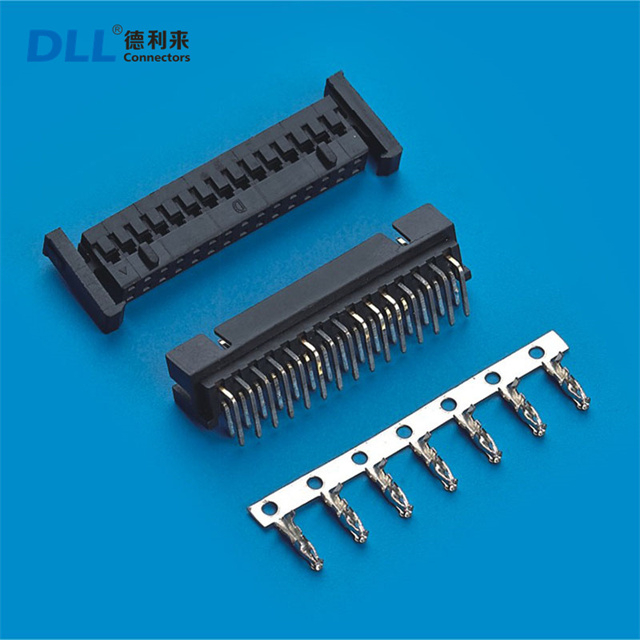

PHY series 2.0mm pitch wire to board dip connector

PHY series 2.0mm pitch connector,PHY series wire to board dip connector,PHY series 2.0mm pitch dip connector,PHY series 2.0mm pitch dip connector,PHY series dip connector
Availability:
Quantity:
Inquire Add to Basket

  • PHY

  • DLL

Specification

SPECIFICATION

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD

PHY series 2.0mm pitch connector;PHY series wire to board dip connector

Rated Voltage:

   250V AC,DC

Rated current:

   2A AC,DC

Contact resistance:

   20MΩ max

Insulation Resistance:

   800MΩ min

Withstand Voltage:

   800V AC/minute

Temperature:

   -25℃~+85℃



Material

MATERIAL

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD



Housing:

(Nylon)UL94-V0(2)

Terminal:

Phosphor Bronze,Tin Plated

Wafer:

(Nylon)UL94-V0(2)



Drawing

DRAWING

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD

PHY series 2.0mm pitch wire to board dip connector

More Products For You To Choose:


Application

Sensor Nodes
Environmental Monitoring: In the field of environmental monitoring, various sensors are required to collect data such as temperature, humidity, air quality, and light intensity. The PHY series connectors can be used to connect these sensors to the control circuit board, enabling the transmission of sensor data to the central processing unit or gateway. For example, in a smart agricultural system, temperature and humidity sensors in the field can be connected to the data acquisition module through the PHY series connector to monitor the growth environment of crops in real time.
Smart Metering: For smart meters, including water meters, electricity meters, and gas meters, the connector can connect the metering sensor and the communication module to the main control board. It ensures the accurate transmission of metering data and the reliable operation of the communication function, enabling the meter to send the metering data to the relevant departments in a timely manner through the network.
